Lamination
On automatic and manual lamination lines at its Kıraç and Kırklareli facilities, Camglass produces flat and bent laminated glass. Interlayer options include standard and coloured PVB, acoustic PVB, EVA, Saflex DG41 and SentryGlas®.
The production method is determined by the form and dimensions of the glass and the selected interlayer. Surface compatibility is checked for tempered, printed and painted glass.
Overview
UV Protection
Blocks 97–99% of UV radiation, preventing fading.
Sound Insulation
Insulation performance that helps reduce noise.
Safe Breakage
Fragments do not scatter if broken, reducing the risk of injury.
Related Products
Laminated Glass
Glass Balustrade
Insulating Glass
Applications
Hotels & Hospitality
Façade Systems
Balustrades and Handrails
Shopfront Glazing
Shopping Centres
Security Applications
Technical Details
Line or equipment | Facility | Maximum Size | Minimum Size |
|---|---|---|---|
Laminating press | Kırklareli | 6000 × 3210 mm | 300 × 600 mm |
Automatic lamination | Kıraç | 4000 × 2800 mm | 300 × 600 mm |
Manual lamination | Kıraç | 5500 × 2800 mm | 300 × 600 mm |
Autoclave | Kıraç and Kırklareli | 2800 × 6000 mm | — |
* The 4–19 mm thickness range refers to each glass layer used in lamination. The total thickness of the finished laminated glass is determined by the sum of the glass layers and interlayers. In autoclave production, the size limits of the lamination line and the autoclave are assessed together.
Reference Projects

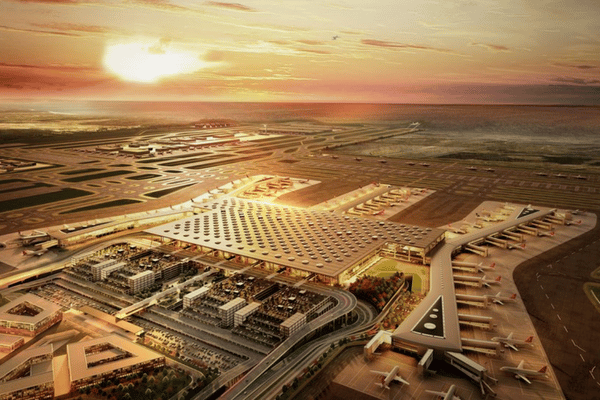

Istanbul Airport

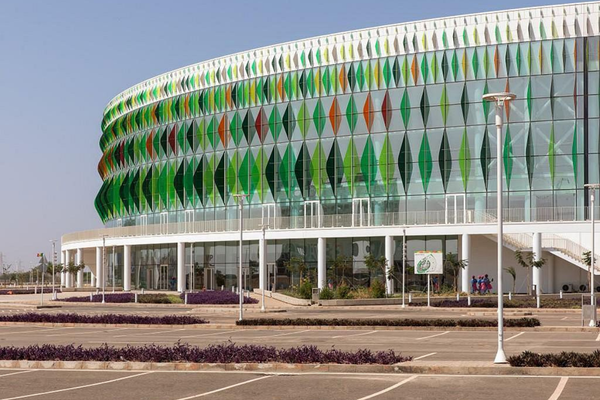

Dakar Arena

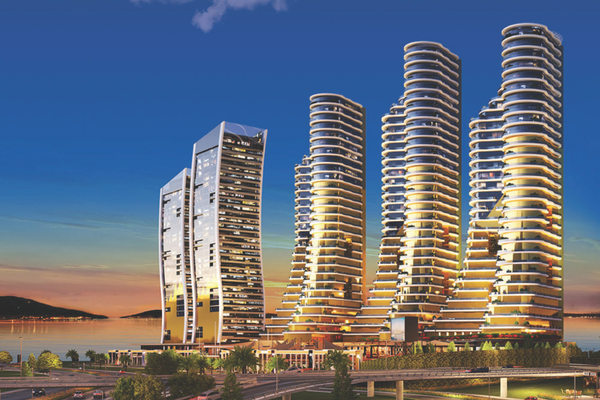

İst Marina

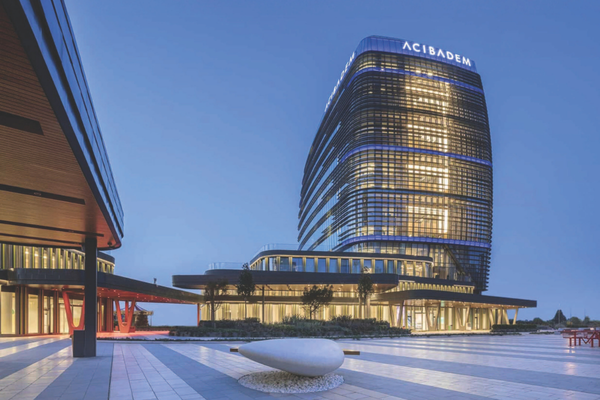

Acıbadem Ataşehir Hospital

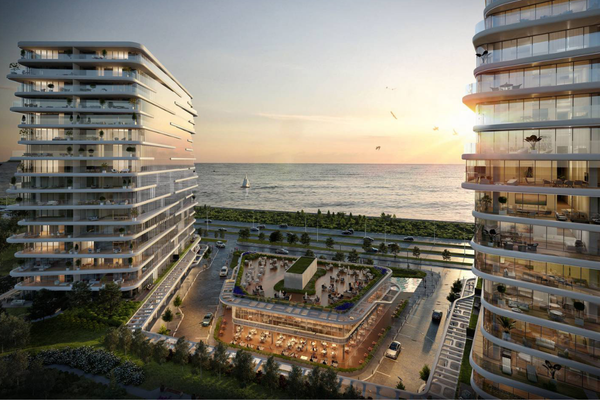

Yedi Mavi
